Installation

Click Here to download the connector. Unzip the download file and run setup.exe to install the Connector. You may be prompted to install some prerequisite components before the Connector itself is installed, as shown below.

The installer for the prerequisites is likely to request your permission to continue via a User Account Control window. In many cases this window does not automatically come to the front. Look out for a flashing icon similar to the one shown below to bring the window to the front and click Yes to allow the installer to continue.

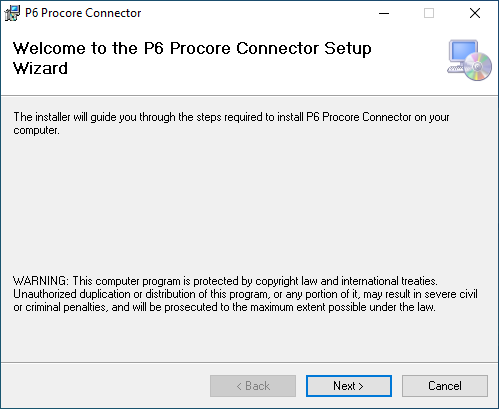

Once the prerequisite components have been installed, you should then see the Connector installer, as shown below. Click Next to continue.

One of the next screens you will see as the installer progresses is shown below:

This allows you to determine if the Connector is added to your own P6 configuration. By default this checkbox is selected as this is the desired behavior. If you are an administrator adding the Connector to a machine, but you are not a P6 user, then you can remove the tick from this checkbox and the installer will not attempt to add the Connector to P6.

Before the installation completes, your should see a window appear, similar to the one shown below, which indicates that the Connector has successfully been added to the Tools menu in P6.

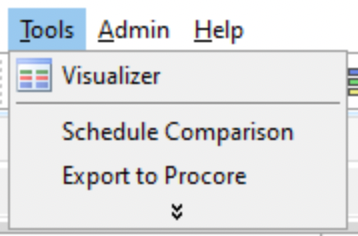

Click the Finish button on this window, which will allow the installer to finish. Once installation is complete, when you open P6 you should see a new Export to Procore option on the P6 tools menu:

This option will be disabled unless you have at least one project open.
